NEW! The "AUDIO-POD MUTE”
System,
a
Microphone Mute/Cough Controller With
Integrated Stereo Headphone Amplifier for Program
Audio
FRONT
VIEW Model AP-Mute-FB
The ideal solution
for studio or remote broadcasts requiring a MUTE or COUGH switch and an
integrated headphone amplifier. The Audio-Pod Mute works in conjunction
with other Audio-Pod modules and Power Supply. One Audio-Pod Power Supply
(not included) will power up to four Audio-Pod modules, and any combination
of Audio-Pod module types or options may be combined using the same Power
Supply. 10 foot power supply cables are supplied with each Pod.
Table-top and flush mounting
brackets for mounting the Audio-Pod modules are also available.
- The Mic MUTE control
portion includes the following features:
• Large LED
lighted long life silent reed type push button
• Front or top mounted pushbutton (customer choice, no extra charge)
• XLR connectors for Mic in and out as well as Eurostyle screw
terminal termination of Mic out connection on the rear panel terminal
block
- • Switch selectable
Phantom Power is included
- The
integrated stereo headphone amplifier section includes the following
features:
• Voltage Controlled Amplifier (VCA) circuitry employed
• Power Op-Amp headphone output providing both the power and P-P
voltage required to drive headsets ranging from 8 to 600 ohms
• Rear panel output phase switch (0/180 degrees) to address bone
conduction cancellation issues often experienced by users
• ESD protected ¼” and 3.5mm stereo headphone output
jacks on the front panel
• Rear panel "maximum headphone gain set control" to
restrict the maximum headset output
• Single ended L&R inputs on rear panel 3.5mm stereo jack
for quick connect and disconnect as well as Eurostyle screw terminal
termination on the rear panel terminal block
• Precision metal film resistors used throughout the audio chain
for low noise

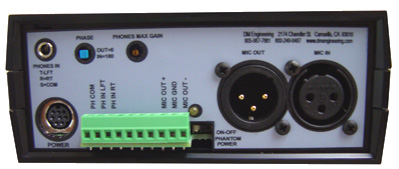

REAR
VIEW Model AP-Mute
Model number convention:
AP-MUTE- (FB or TB)
FB=front
button
TB=top
buton
Audio-Pod Power Supply (powers up to 4 Audio-Pods)
Audio-Pod
Mute Module - $259.00
Audio-Pod Power Supply Model AP- PS - $94.00
Table Top Tilt Mounting Bracket Model AP-TTB - $29.00
Flush Mounting Bracket for (In-Table Mounting) Model AP-FMB $32.00
Click
